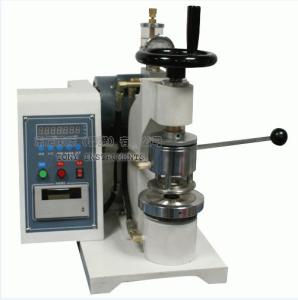

Digital Bursting Strength Test Machine TNJ-038

Name: Digital Bursting Strength Test Machine TNJ038
Brand: Tony
Price: 1 USD

Place of Origin : Donggguan

Brand Name : Tony

Model Number : TNJ-038

Packaging Details : WOODEN PACKAGE

Delivery Time : WITHIN 30 DAYS

Payment Terms : T/T

Supply Ability : 300pcs/year

Contact Now

The bursting strength tester is used for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its accuracy has promoted 20 times more than the traditional gauge.

This Bursting Strength Tester Technical Parameters:

capacity(optional)	high Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
unit	Kpa, psi, kg/cm^2
accuracy	± 0.5%
pressure Range	250~5600kpa
specimen Clamping Force	>690kpa
oil	5% Glycerin; 15% Distilled Water
sensing method	pressure Transmitter
indicating Method	digital
display	LCD
material of the Ring	stainless steel SUS304
opening in upper clamp	31.5 ± 0.05 mm Diameter
opening in lower clamp	31.5 ± 0.05 mm Diameter
motor	Anti-vibration Motor 1/4 HP
operation Method	semi-automatic
power supply	1ø, AC220± 10%, 50 Hz; 120W
standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
standards	JIS-L1004, L1018, L1031, K6328, P8131, P8112,ASTM-D2210; TAPPIT403TS-63 ISO2759-2001; GB/T1539
